TATA LPT 4825 &
SIGNA 4825.T BS6

EXPERIENCE THE POWER OF 6
EXPERIENCE THE POWER OF CHANGE
BS6

OVERVIEW

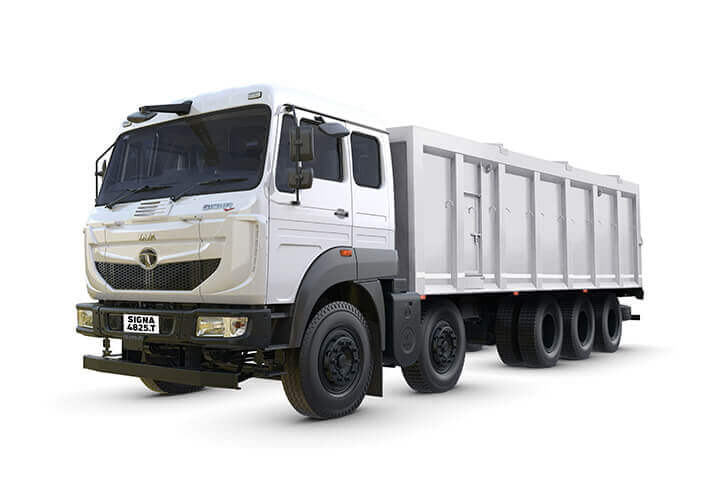

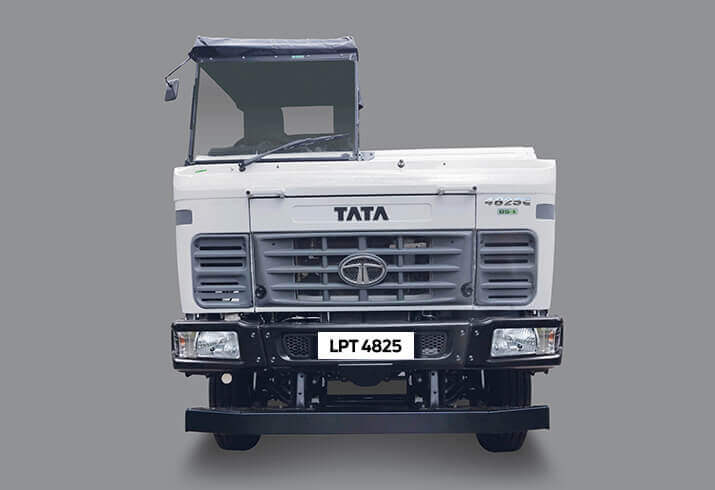

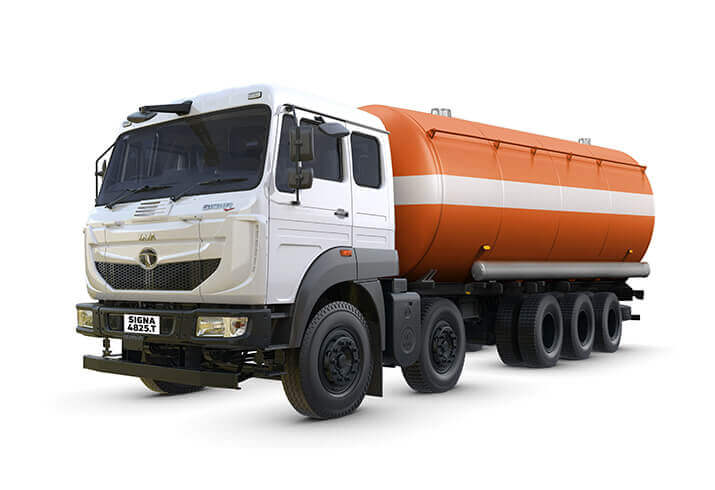

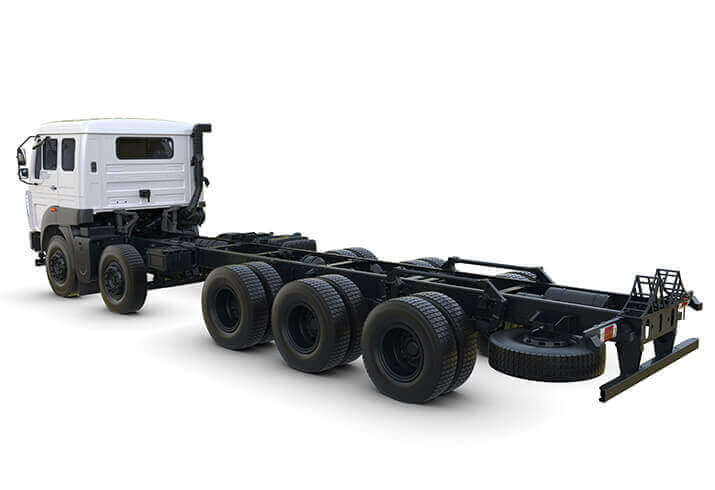

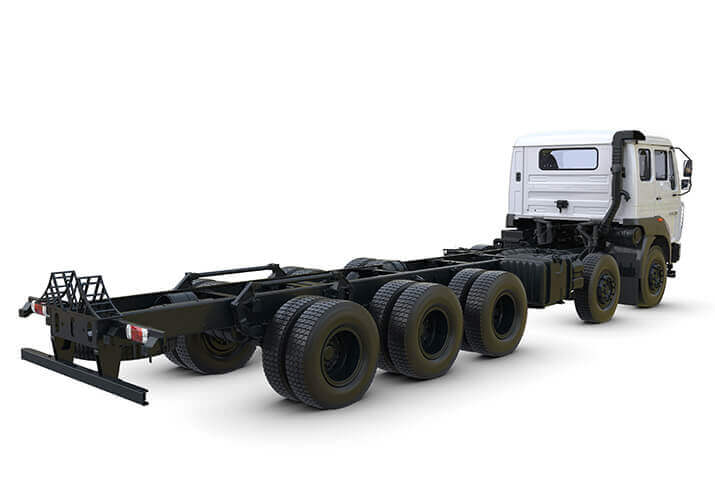

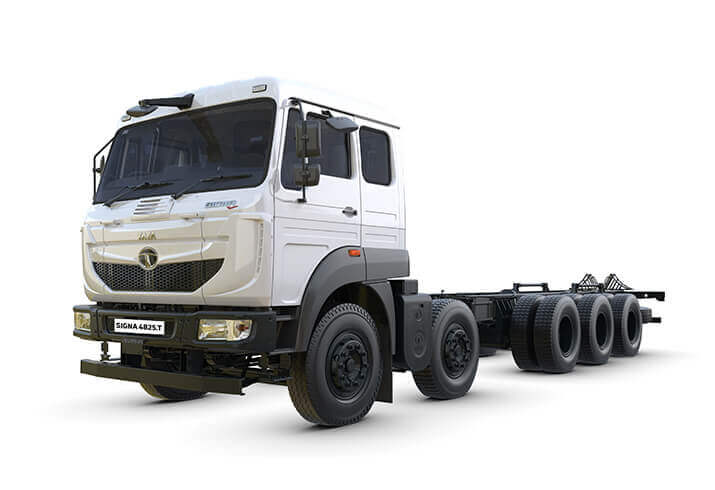

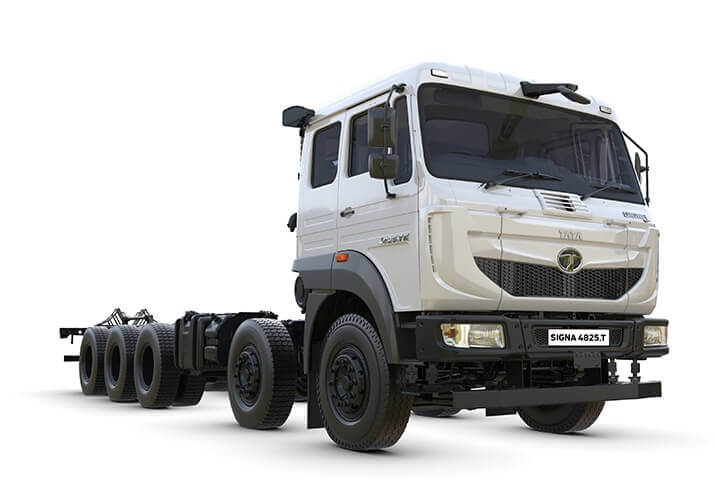

TATA LPT 4825 & SIGNA 4825.T BS6
overview-signa-4825-T

TATA M&HCV BS6 range of vehicles are designed to offer Sustained & Profitable Business for Owners through its new unique customer proposition of POWER OF 6


  • Power of Enhanced Performance
  • Power of Total Cost of Ownership
  • Power of Comfort and Convenience
  • Power of Choice
  • Power of Connectivity
  • Power of Total Peace of Mind

Awarded the "HCV Rigid Cargo Carrier of the year" in the Apollo CV Awards 2020, Signa 4823.T which upgrades to Signa 4825.T in the BS6 avatar is truly an experience in itself !

Powered by a Cummins ISBe 6.7 CR 250 HP engine with a world class BOSCH fuel injection system and innovative performance enablers like 3 Mode Fuel Economy Switch coupled with Gear Shift Advisor for drive coaching make the TATA LPT 4825 & SIGNA 4825.T BS6 as the leader in performance for customers in the biggest segment of multi-axle trucks.

Available in both Signa and Cowl options across 2 deck lengths configurations with ARAI certified fully built solutions, SIGNA 4825.T comes with CX and LX variants equipped with world class value features towards reducing TCO and enhancing performance, ergonomics, productivity, convenience and safety like and a comprehensive New Generation Connected Vehicle Solution make 4825 most diversely favourite choice in its segment.

The smartly designed cabin space, improved ergonomics and NVH levels in the Signa range offer a superior in-cab experience. The cabins also come with AC and ventilation options, enabling drivers to operate fatigue free over long hauls, leading to better productivity and trip efficiency.

Aggregates

TATA LPT 4825 & SIGNA 4825.T BS6
CUMMINS ISBe 6.7 BS6 250
430 Dia Organic Clutch
TATA G1150 8F+1C+ 1R
TATA Front Axle
TATA RA110 LD Rear Axle
Exhaust After Treatment System
X
  • GEARBOX TYPE : 9 Speed Synchromesh | FGR : 12.87 | TYPE OF SHIFT : Linkage

CLUTCH

  • Bigger clutch size as for 6.7 L engine
  • Organic lining for longer life

TRANSMISSION PERFORMANCE

  • 5 planet range gearing design
  • High Capacity 9 Speed G1150 with deeper ratios for excellent loaded wheel traction under heavy haulage
  • Pneumatic power assistance adaptability

SERVICE & MAINTENANCE

  • 200K Kms ODI for Clutch Fluid
  • 160K Kms ODI for Transmission Oil
  • Only 4 Service intervals in 6 L KMs (~7 years)

FEATURES

  • PTO Provision in gearbox
  • Twin cone Synchro with carbon lining for enhanced shift performance
  • High Reliability design - Profile Ground gears
X
  • AXLE TYPE : 7T Reverse Elliot Twin Steer Front Axle
  • 12.5T Dual Tyre Lift Axle (Pusher)
  • 21T Tandem Single Reduction Rear Axle

RUNNING PERFORMANCE

  • TATA make RA 110 High Capacity axle
  • 3% higher torque at wheel for superior loaded traction on all terrains

FUEL ECONOMY

  • Shallower RAR for optimised Fuel Economy

SERVICE & MAINTENANCE

  • 160K Kms ODI for Axle Oil
  • 160K Kms service interval for Hub Greasing
  • Only 4 Service intervals in 6 L KMs (~7 years)

FEATURES

  • Option of UNITIZED WHEEL BEARINGS
  • No hub greasing required for 5L Kms
X
  • DOC (Diesel Oxidation Catalyst) + DPF (Diesel Particulate Filter) + SCR (Selective Catalytic Reduction) + AMOX (Ammonia Slip Catalyst)

EMISSION COMPLIANCE

  • Robust emission governance
  • Globally proven for Euro VI (eq) compliance
  • Same BSIV DEF can be used

PERFORMANCE

  • Higher Fluid economy due to cleaner burning
  • Generates less soot giving longer uninterrupted runs (due to less DPF cleaning)

DURABILITY & RELIABILITY

  • Lesser system complexity and cleaner combustion results in longer engine life
  • Easily scalable to BS6 OBD 2 norms

FEATURES

  • Airless DEF Doser
  • DEF Quality Sensor for ensuring DEF concentration for uninterrupted SCR functioning
  • 60 L DEF Tank for longer uninterrupted trips enabling lower DEF fills
Polymer Fuel Tank
295/90R20 Radial Tube Tyres in front and rear
World Class TATA SIGNA Cabin
New Generation Instrument Cluster
X
  • TYPE : Polymer Fuel Tank | CAPACITY : 300L, 365L | SHAPE : Rectangular | MATERIAL : HDPE (High Density Poly Ethylene)

MATERIAL ADVANTAGE

  • High Strength-to-density ratio thermoplastic
  • Corrosion resistant - thus cleaner fuel supply
  • Leak free | High Chemical & Impact resistance

CAPACITY ADVANTAGE

  • 62% higher fuel tank capacity leading to longer runs on single fill
  • Lesser no. of fills imply lesser chance of theft

FEATURE ADVANTAGE

  • ANTI FUEL THEFT
  • Telematics enabled fuel level sensor mounted on fuel tank detects fuel theft and sends digital communication to owner on mobile
X
  • RTO PASSING : Full 48T GVW

PERFORMANCE

  • Designed with 90% aspect ratio for IAL payload
  • 3-4% higher Fuel Economy due to LRR tyres

CAPACITY ADVANTAGE

  • 100% interchangeability with 10R20 tyres due to same wheel rim size
  • Usage comfort and ease of stocking

FEATURE ADVANTAGE

  • Low Rolling Resistance tyres for better FE
  • Advanced Tyre Tread compound
  • Optimized Tyre Tread pattern
X

COMFORT

  • Tilt & Telescopic Steering wheel
  • 4 way adjustable mechanically suspended seats
  • AC and Blower options
  • Best in class NVH characteristics
  • 4 point cabin suspension with vertical & transverse shockers

CONVENIENCE

  • High utility space in cabin
  • World Class Driver Safety, Ride Comfort and Drive Ergonomics of SIGNA
  • Front & Side Proximity Mirror
  • 3 piece metal bumper for lower repair time and cost

ERGONOMICS

  • Easily accessible Control Panel
  • Driver friendly dashboard
  • Pendant type accelerator and clutch pedals
  • Higher in-cabin space

COWL ADVANTAGE

  • Cowl Compatible to different cabin styles
  • Customizable to various cabin sizes
  • Easy integration with multiple body sizes/types
  • Flexibility at body builder end for internal trims
  • Full forward control cowl with centre and side panels + floor structure + wheel arches
  • Lower cabin conversion cost in cowl
X

ADVANCED DRIVER INFORMATION

  • Avg. Fuel Economy Indicator + Distance to Empty
  • Digital Service Reminder
  • Digital Air & Oil Pressure gauges | Digital DEF Gauge
  • Digital Battery Voltage indicator

DRIVER COACHING

  • Gear Shift Advisor
  • 3 mode Fuel Economy Switch
  • Overspeed alert

New DIAGNOSTIC & DRIVER PROMPT FEATURES

  • DPF Regeneration indicator
  • SCR System Fault indicator
  • High Exhaust System Temperature indicator
  • Air Filer Clogged indicator
  • Low DEF indicator

FUTURE PACKAGE PROTECTION

  • AT AMT packaging
  • TPMS Packaging
  • Electronic Stability Control packaging
  • Cruise Control packaging

ULTRA ULTRACABIN FEATURES

Click to know more about SIGNA Cabin
Signa Cabin Features
4 way adjustable Seats
Tilt & Telescopic Steering for superior driving comfort
High in-cabin and utility space
X

Signa Cabin Features

  • Ergonomic Dashboard design with digital Instrument Cluster
  • Easy accessibility of Controls
  • Comfy and Expedient Drivability
  • Premium Interior aesthetics for superior in-cab driving experience
X

4 way adjustable Seats

  • Seats with Emergency Lockable Retractor (ELR) seat belts
  • 4 way adjustable mechanically suspended seat for unmatched riding comfort
  • Deep Seat cushioning and extended body support for long, fatigueless driving
X

Cockpit type dual tone interiors

  • Cockpit type dual tone interiors
  • Dash mounted GSL for Expedient drivability
  • Premium Interior aesthetics for superior in-cab ride Experience
X

High in-cabin

  • High in-cabin and utility space
  • "NEW GEN TRUCKING" experience
Factory fitted Forced Ventilation
Elegant Control Panel with ergonomically positioned switches
Power Socket provision
Panic Button and Vehicle Tracking System as per AIS 140
X

Factory fitted Forced Ventilation

  • (Blower) & Air Conditioning options
X

Four Spoke soft touch steering wheel

  • Four Spoke soft touch steering wheel for superior driving comfort
X

Power Steering

  • Power Steering with dropping characteristics
  • Higher Driving Safety and Stability
X

COMFORT

  • Tilt & Telescopic Steering wheel
  • Dash mounted gear lever
  • 4way adjustable mechanically suspended seats
  • AC and Blower options
  • Best in class NVH characteristics

CONVENIENCE

  • Highest Utility Space with centre console
  • World Class Driver Safety, Ride Comfort and Drive Ergonomics of ULTRA
  • Front & Side Proximity Mirrors
  • 3 piece modular bumper for easy serviceability

ERGONOMICS

  • Central Arm Rest
  • Easily accessible Control Panel
  • Driver friendly dashboard
  • Pendant type accelerator and clutch pedals

FEATURES

  • Walk through cabin
  • Wider door opening angles for easy ingress and egress
  • Car like exterior and interior design
  • Built in Aero Kit
Improved Cabin Suspension
Both side grab handle and wider door angle for easy ingress/egress
3 piece Bumper Ease of reparability due to modular design
Magazine Pocket and Bottle Holder
X

Improved Cabin Suspension

  • Improved Cabin suspension with Front Dampers and Rear Shock Absorbers with Coil Springs
  • Enhanced Driving Comfort with Transverse Cabin Shockers at rear
  • Best in Class NVH Characteristics
X
  • GEARBOX TYPE: 6 Speed Synchromesh | FGR: 9.19 | TYPE OF SHIFT: Cable

CLUTCH PERFORMANCE

  • Bigger clutch for higher engine torque transmission and smoother power transfer
  • Organic lining for longer life

TRANSMISSION PERFORMANCE

  • Trusted and proven TATA G750 transmission
  • Same ratio set as in BSIV to sustain optimised balance of loaded traction and fuel economy

SERVICE & MAINTENANCE

  • 150K Kms ODI for Clutch Fluid
  • 150K Kms ODI for Transmission Oil
  • Only 4 Service intervals in 6 L KMs (~7 years)

FEATURES

  • PTO Provision in gearbox
  • Twin cone Synchro with carbon lining for enhanced shift performance
  • High Reliability design - Profile Ground gears
X
  • AXLE TYPE: 7T Reverse Elliot Front Axle | 11.5T Banjo Type Single Reduction Rear Axle

RUNNING PERFORMANCE

  • TATA make RA 1085 High Efficiency rear axle
  • 19% higher torque at wheel for superior loaded traction on all terrains

FUEL ECONOMY

  • Shallower RAR for optimised Fuel Economy

SERVICE & MAINTENANCE

  • 150K Kms ODI for Axle Oil
  • 150K Kms service interval for Hub Greasing
  • Only 4 Service intervals in 6 L KMs (~7 years)

FEATURES

  • Option of UNITIZED WHEEL BEARINGS
  • No hub greasing required for 5L Kms
X
  • EGR (Exhaust Gas Recirculation) | DOC (Diesel Oxidation Catalyst) + DPF (Diesel Particulate Filter) + SCR (Selective Catalytic Reduction) + AMOX (Ammonia Slip Catalyst)

EMISSION COMPLIANCE

  • Robust emission governance
  • Globally proven for Euro VI (eq) compliance
  • Same BSIV DEF can be used

PERFORMANCE

  • Lesser DEF consumption in SCR due to partial NOx control through EGR route

DURABILITY & RELIABILITY

  • Easily scalable to BS6 OBD 2 norms

FEATURES

  • Airless DEF Doser
  • DEF Quality Sensor for ensuring DEF concentration for uninterrupted SCR functioning
  • 60 L DEF Tank for longer uninterrupted trips enabling lower DEF fills
Lockable Glove box beneath co-driver seat
Storage box on Dashboard
Lowest Step-in Height with three step footstep and
Scuff Plate
Wide and Comfortable Sleeper Berth with large
berth box
X
  • CAPACITY: 225 L (45, 49, 53WB)350 L (56, 68WB) | SHAPE: Round | MATERIAL: Metallic

CAPACITY ADVANTAGE

  • Bigger fuel tank size in longer wheelbases for lesser fills and saving of undue fuel cost

FEATURE ADVANTAGE

  • ANTI FUEL THEFT
  • Telematics enabled fuel level sensor mounted on fuel tank detects fuel theft and sends digital communication to owner on mobile
X

RTO PASSING

  • Full 18.5T GVW

PERFORMANCE

  • Designed with 90% aspect ratio for IAL payload
  • 3-4% higher Fuel Economy due to LRR

CONVENIENCE

  • 100% interchangeability with 10R20 tyres due to same wheel rim size
  • Usage comfort and ease of stocking

FEATURES

  • Low Rolling Resistance tyres for better FE
  • Advanced Tyre Tread compound
  • Optimized Tyre Tread pattern
X

ADVANCED DRIVER INFORMATION

  • Avg. Fuel Economy Indicator + Distance to Empty
  • Digital Service Reminder
  • Digital Air & Oil Pressure gauges | Digital DEF Gauge
  • Digital Battery Voltage indicator

DRIVER COACHING

  • Gear Shift Advisor
  • 3 mode Fuel Economy Switch
  • Overspeed alert

New DIAGNOSTIC & DRIVER PROMPT FEATURES

  • DPF Regeneration indicator
  • SCR System Fault indicator
  • High Exhaust System Temperature indicator
  • Air Filer Clogged indicator
  • Low DEF indicator

FUTURE PACKAGE PROTECTION

  • AT AMT packaging
  • TPMS Packaging
  • Electronic Stability Control packaging
  • Cruise Control packaging
X

Clear Lens Wraparound Head Lamp

  • Clear Lens Wraparound Head Lamp for superior visibility coupled with chic styling
Clear Lens Wraparound
Head Lamp
Pendant type Accelerator
and Clutch pedals for
fatigueless driving
LH & RH Aero Corners for
reduced aerodynamic drag
and better fuel economy
Single Locking System for
entire vehicle
X

Clear Lens Wraparound Head Lamp

  • Clear Lens Wraparound Head Lamp for superior visibility coupled with chic styling
X

Mirrors

  • Side Close Proximity Mirror
  • Normal Rear View Mirror
  • Wide Angle Rear View Mirror
X
  • AXLE TYPE: 7T Reverse Elliot Front Axle | 11.5T Banjo Type Single Reduction Rear Axle

RUNNING PERFORMANCE

  • TATA make RA 1085 High Efficiency rear axle
  • 19% higher torque at wheel for superior loaded traction on all terrains

FUEL ECONOMY

  • Shallower RAR for optimised Fuel Economy

SERVICE & MAINTENANCE

  • 150K Kms ODI for Axle Oil
  • 150K Kms service interval for Hub Greasing
  • Only 4 Service intervals in 6 L KMs (~7 years)

FEATURES

  • Option of UNITIZED WHEEL BEARINGS
  • No hub greasing required for 5L Kms
X

Mirrors

  • Side Close Proximity Mirror
  • Normal Rear View Mirror
  • Wide Angle Rear View Mirror
Mirrors
Sun Visors for Driver & Co-Driver
X

Mirrors

  • Side Close Proximity Mirror
  • Normal Rear View Mirror
  • Wide Angle Rear View Mirror
X

RTO PASSING

  • Full 18.5T GVW

PERFORMANCE

  • Designed with 90% aspect ratio for IAL payload
  • 3-4% higher Fuel Economy due to LRR

CONVENIENCE

  • 100% interchangeability with 10R20 tyres due to same wheel rim size
  • Usage comfort and ease of stocking

FEATURES

  • Low Rolling Resistance tyres for better FE
  • Advanced Tyre Tread compound
  • Optimized Tyre Tread pattern
X

ADVANCED DRIVER INFORMATION

  • Avg. Fuel Economy Indicator + Distance to Empty
  • Digital Service Reminder
  • Digital Air & Oil Pressure gauges | Digital DEF Gauge
  • Digital Battery Voltage indicator

DRIVER COACHING

  • Gear Shift Advisor
  • 3 mode Fuel Economy Switch
  • Overspeed alert

New DIAGNOSTIC & DRIVER PROMPT FEATURES

  • DPF Regeneration indicator
  • SCR System Fault indicator
  • High Exhaust System Temperature indicator
  • Air Filer Clogged indicator
  • Low DEF indicator

FUTURE PACKAGE PROTECTION

  • AT AMT packaging
  • TPMS Packaging
  • Electronic Stability Control packaging
  • Cruise Control packaging
X

COMFORT

  • Tilt & Telescopic Steering wheel
  • Dash mounted gear lever
  • 4way adjustable mechanically suspended seats
  • AC and Blower options
  • Best in class NVH characteristics

CONVENIENCE

  • Highest Utility Space with centre console
  • World Class Driver Safety, Ride Comfort and Drive Ergonomics of ULTRA
  • Front & Side Proximity Mirrors
  • 3 piece modular bumper for easy serviceability

ERGONOMICS

  • Central Arm Rest
  • Easily accessible Control Panel
  • Driver friendly dashboard
  • Pendant type accelerator and clutch pedals

FEATURES

  • Walk through cabin
  • Wider door opening angles for easy ingress and egress
  • Car like exterior and interior design
  • Built in Aero Kit

Specifications

TATA LPT 4825 & SIGNA 4825.T BS6

PRODUCT DETAILS

Model
  • Tata LPT 4825 & SIGNA 4825.T BS6
Weight
  • Gross Vehicle Weight : 47500 kg
Engine
  • Engine : Cummins ISBe 6.7L BS6
  • Max Power : 186 Kw @ 2300 r/min
  • Max Torque : 950 Nm @ 1000 – 1700 r/min
Clutch
  • Clutch : 430 mm Dia Push type Single Plate Dry FrictionOrganic Lining
Transmission
  • Transmission : TATA G1150 9F (1C) +1R Manual Synchromesh
Axle
  • Front Axle : TATA Heavy Duty 7T Reverse Elliot Type
  • Rear Axle : TATA Single Reduction RA110HD
Frame
  • Frame : Ladder Type, Heavy Duty Frame | (285 x 65 x 8.5)
CAB/COWL
  • CAB/COWL : Cowl & SIGNA
Tyres
  • Tyres : 295/90R20 Radial Tube Tyres
Ventilation
  • Ventilation : Cowl - Blower | Signa - Blower & AC
Emission Control
  • Emission Control : DOC + DPF + SCR + AMOX
Fuel Tank
  • Fuel Tank : 365L (SDL: 28ft), 300L (LDL: 30ft) Polymer with Anti Fuel Theft
Deck Length
  • Deck Length Option : SDL: 8534 mm | LDL: 9144 mm
Options
  • WB (mm) : 6800
  • Span (mm) : 8534 | 9144
WHEELBASE & APPLICATION
Wheelbase
  • Wheelbase Option : 6800 mm
Application
  • 6800 : Cement | Flyash | Clinker | Coal | Chemical/Edible Oil | Bitumen | Market Load | Const. Agg. | POL | Agri | Iron & Steel FG | Industrial goods

SERVICE SCHEDULE & WARRANTY

ODI | Interval
  • Engine : 80K Km (1st @ 40K Kms)
  • Gear Box : 160K Km (1st @ 1.2L Kms)
  • Rear Axle : 160K Km (1st @ 1.2L Kms)
  • Hub Grease : 160K Km (1st @ 1.2L Kms)
Warranty
  • Driveline Warranty : 6 Year | 6 L Km

VALUE FEATURES

TATA LPT 4825 & SIGNA 4825.T BS6
Value Features
Value Features Benefits
CX LX
ELECTRONIC ANTI FUEL THEFT

Electronic Anti Fuel Theft

  • Telematics enabled Fuel theft monitoring
  • Savings in undue fuel expenses | Lower cost of operations
ENGINE BRAKE.jpg

Reverse Parking Assistance System

  • Guided and Safe reversing of vehicles
  • Prevention of damage and loss of productivity
3 MODE FUEL ECONOMY SWITCH.jpg

3 Mode Fuel Economy Switch

  • Load - Terrain - Speed based Fuel Economy management
GEAR SHIFT ADVISOR

Gear Shift Advisor

  • Load - Terrain - Speed based Gear shift coaching
GEAR SHIFT ADVISOR

Low Rolling Resistance Tyres

  • Higher Fuel Economy
  • Longer Tyre Mileage
GEAR SHIFT ADVISOR

New Generation Telematics

  • Advanced features for Fleet, Trip & Business Management
GEAR SHIFT ADVISOR

Forced Ventilation

  • Conducive ride comfort
GEAR SHIFT ADVISOR

LED Tail Lamps

  • Lower power consumption | Longer durability
GEAR SHIFT ADVISOR

Tilt & Telescopic Steering

  • Adaptability to different driving habits and driver sizes
  • Higher driving convenience
GEAR SHIFT ADVISOR

Aero Kit (Dealer Fitment option)

  • Better fuel economy through reduction of aerodynamic drag (mainly for containerized applications)
Hill Start Assist

Hill Start Assist

  • Prevents roll back of vehicle during "Stop & Go" situation on a uphill gradient actuated by a switch
  • Prevents rear end collision | Minimizes clutch and brake liner wear | Improves safety and uptime
Hill Start Assist

Engine Brake

  • Improves Braking efficiency especially on heavily loaded vehicles on gradients
  • Enables faster downhill control speeds
  • Reduced brake liner wear and Improved brake life by 20-
    30% | Lower maintenance cost & TCO
GEAR SHIFT ADVISOR

High Speed USB Charging Port

  • Fast mobile charging for drivers
  • Uninterrupted connectivity
GEAR SHIFT ADVISOR

Air Conditioning

  • Better fuel economy through reduction of aerodynamic drag (mainly for containerized applications)
GEAR SHIFT ADVISOR

Truck Hub Unit (Unitized Wheel Bearing)

  • No hub greasing required for 5L Kms
  • Saving in maintenance cost
  • Higher running uptime

Inquiry Form

TATA LPT 4225 COWL & SIGNA 4225.T





call now /  chat nowWhatsapp
