High Power & Pickup

  • High Power: 14.7 kW for higher speed.
  • High Pickup: 45 Nm for faster trips
  • High Gradeability: 27.5% to negotiate flyovers and gradients
...

High Mileagep

  • Gear Shift Advisor
  • Catalysed Diesel Particulate Filter
...

High Convenience

  • Instrument Cluster
  • USB Charger
  • Bottle & Document holder
...

High Payload

  • High Payload of 750kg in Diesel
  • Leaf Spring Suspension
  • Heavy Duty Chassis
...

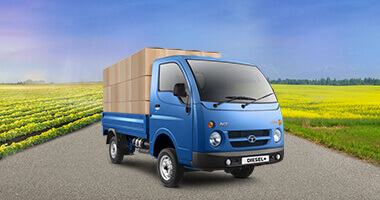

Low Maintenance

  • Simple Engine
  • Long Service Intervals
  • 2 year/72000 km warranty
...

High Profits

  • Low Price
  • High Load Carrying Capacity
  • Low Maintenance
  • High Profits

Type :

2-cylinder, 700 cc DI engine

Max Power :

14.7kW @ 3 600 r/min 3

Max Torque :

45 Nm @ 1800 - 2 000 r/min3

Clutch :

Single-plate, dry-friction diaphragm type

Gearbox :

GBS 65 4/6.31

Front :

Disc Brakes

Rear :

Drum brakes

Front :

Parabolic leaf spring

Rear :

Semi - Elliptical leaf spring

Tyres :

145R12 LT 8PR RADIAL

Length :

3800

Width :

1500

Height :

1845( Unladen)

Wheelbase :

2100

Ground Clearance :

160

Cargo Box Dimensions :

2200 mm X 1490 mm x 300 mm

Min Turning Circle Radius :

4300

Fuel Tank Capacity :

30 L

DEF Tank Capacity :

10.5 L

Max. Gadeability :

27.5%

Max. Gadeability :

29 %

Max. GVW :

1675 Kg

Kerb Weight :Payload :

750 Kg

Tata Ace Gold Diesel Plus Brochure
