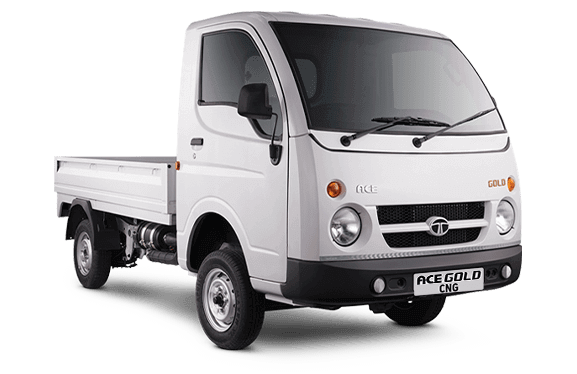

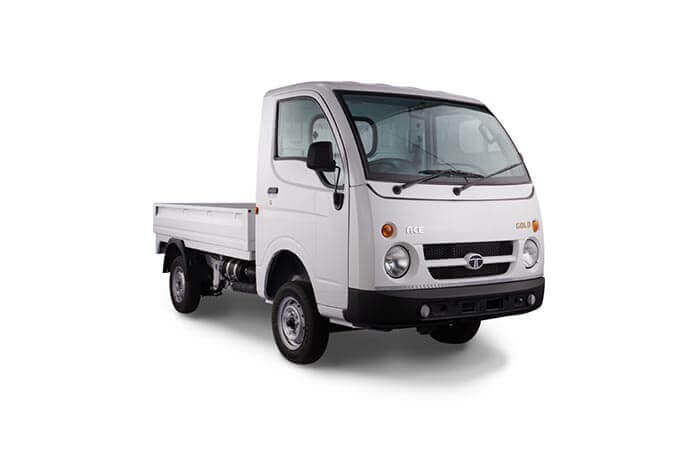

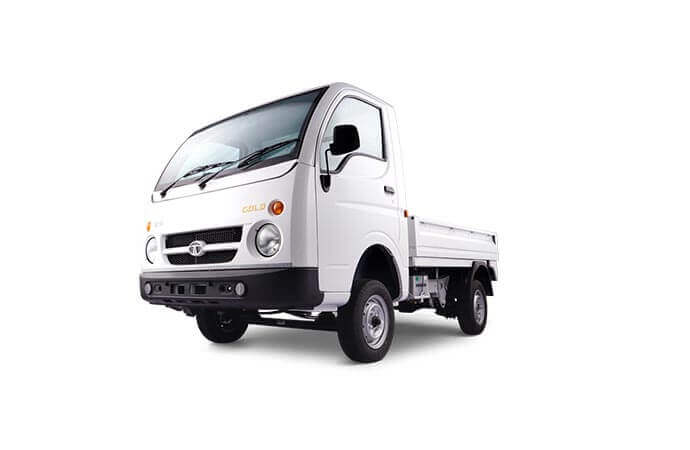

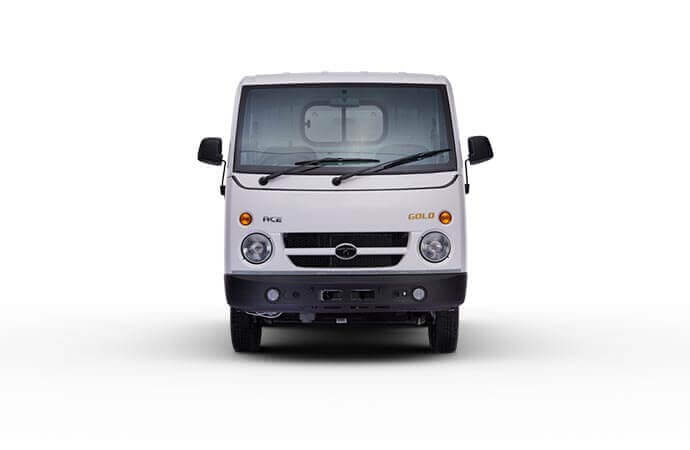

Tata Ace Gold CNG

In 2005, Tata Motors introduced the iconic Tata Ace; a small commercial vehicle that soon went on to become India's no.1 selling mini truck. Since then, over 23 lakh Aces have been sold in the last 15 years. This popular series, also referred to as 'Chhota Haathi', has helped lakhs of businesses flourish.

The CNG variant of the Ace was launched in 2008, and was received equally well.

The Tata Ace Gold CNG BS-6 now comes with higher mileage, better pick-up, more payload, more convenience, lower maintenance and higher profits

...

Tata Ace Gold CNG comes with high mileage

  • Tata Ace Gold CNG comes with a better mileage
  • Gear shift advisor for higher mileage
...

Tata Ace Gold CNG comes with better pickup

  • Water cooled multipoint gas injection 694 cc CNG engine
  • High power of 26 HP for better speed
  • High torque of 50 Nm for better acceleration
  • Higher gradeability of 29% for better pickup
...

Tata Ace Gold comes with more payload

  • Heavy duty truck-like chassis now even more reinforced
  • Same rugged front & rear leaf spring suspension now even more stiffer
  • Same durable like axles
  • High payload of 640 KGs
...

Tata Ace Gold CNG comes with more convenience

  • New digital cluster
  • Big glove box
  • New USB charger
...

Tata Ace Gold CNG comes with low maintenance

  • The Tata Ace Gold CNG comes with a warranty of 72,000 kms or 24 months. With over 1400 service outlets across the country and a 24-hour customer care line (pan India toll free no. 1800 209 7979), users of Tata Motors Commercial Vehicles can rest assured about finding help during emergencies.
...

Higher Profit

  • The Tata Ace Gold CNG comes with a load body length of 2520 mm (8.2 feet), providing larger loading area and maximizing profitability.

Type :

Water cooled, multipoint gas injection 694 cc CNG engine

Capacity :

694 cm 3

Max. output :

19.4kW (26 hp) @ 4000 r/min 3

Max. Torque :

50 Nm @ 2500 r/min 3

Clutch :

Single-plate, dry-friction diaphragm type

Gearbox :

GBS 65-5/5.6, 6-speed manual transmission

Synchromesh on all forward gears, sliding mesh for reverse gear

Steering :

Mechanical, variable ratio ( 23.1 to 28.9:1), 380 mm Diameter

Front :

Disc Brakes

Rear :

Drum brakes 200 mm dia X 30 mm

Type :

Front: Parabolic leaf spring
Rear: Semi-elliptical leaf spring

Shock Absorber :

Hydraulic, double-acting telescopic type

Tyres :

145 R 12 LT 8 PR( 12")

Length :

4075

Width :

1500

Height :

1850

Wheelbase :

2250

Front Track :

1300

Rear Track :

1320

Cargo Box Dimensions (inner to inner) :

2520 mm x 1490 mm x 300 mm

Min. turning Circle Dia :

9250

Fuel Tank Capacity :

70 L

Max. Speed :

70 km/h

Max. Gadeability :

29 %

Max. GVW :

1630 Kg

Kerb Weight :

990 Kg

Seating Capacity :

Driver + 1

Tata Ace Gold CNG Brochure

Size: 790kb
