The heavy duty pickup for higher productivity

V50 OVERVIEW

TATA Intra is a range of pickups built on TML's new 'Premium Tough‘ design philosophy for commercial vehicles that combines rising levels of visual richness and sophistication with robustness and reliability. Intra V50 is a versatile pickup for those customers who ply their vehicles in rural, semi urban, urban, high load & long lead applications.

Intra V50 has a new BSVI compliant DI engine that generates Power is 59.5 KW @ 4000 r/min (80 HP) & best in class torque of 220 Nm @ 1750-2500 r/min with a best in class gradeability of 35%. The vehicle comes with an Eco Switch as well as a Gear Shift Advisor (GSA) which ensure that the customers get best in class fuel efficiency.

Hydraulic Power Assisted Steering (HPAS) not only lessens the steering effort but also makes maneuvering the vehicle that much more easier. A TCR of 6 m and compact footprint make it easily deployable on even congested city roads in spite of 2690 mm (9.8ft) long load body

The chassis frame has been manufactured using hydro forming process & state of the art robotic facilities delivering high standard of quality and sturdiness. Lesser welding joints on the chassis mean higher structural strength & more durability ensuring that the vehicle can be deployed in long lead as well as heavy load applications.

V50 with its large loading area of 2960 mm x 1607 mm (9.8 x 5.3 feet) rated payload of 1500 kg & strong leaf spring suspension ensures more revenue generation possibilities & hence more profits for its owners

Where There's a Will, There's a Way

Sometimes, a delivery is more than just a delivery, especially when it's transporting cement for building important institutions. Tata Yodha pickup is built for those who stop at nothing while delivering promises. Because for a Yodha, where there is ground, there is a road. Watch this video to see why.

TATA INTRA V50 FEATURES

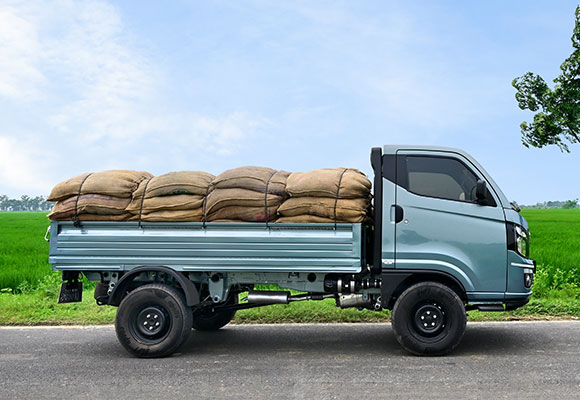

STURDY AND ROBUST BUILD

  • Big loading area: 2960 mm x 1607 mm (9.8 x 5.3 feet)
  • High load carrying capacity: 215R15 tyres (15” radial Tyres)

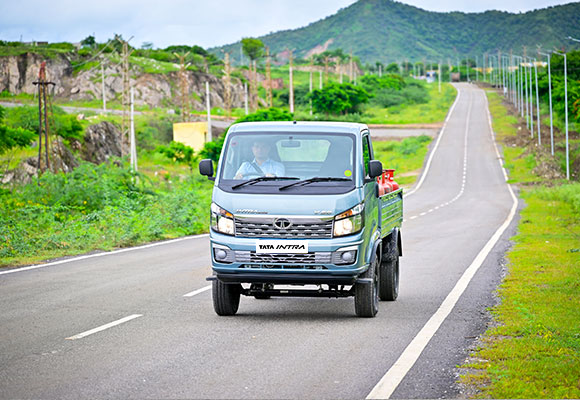

HIGH POWER

  • High performance: Bigger, newer, and more rugged 1496 cm3 (cc)
  • Power is 59.5 KW @ 4000 r/min (80 HP)
  • Torque of 220 Nm @ 1750-2500 r/min
  • High structural strength, more durability, and lower NVH levels
  • Faster pickup: 0-60 kmph in 13.86 seconds

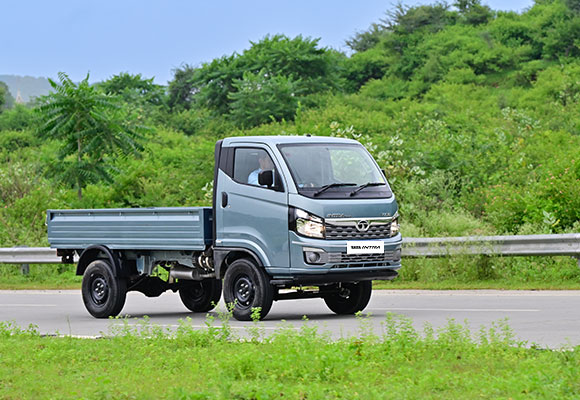

HIGH PERFORMANCE

  • High load carrying ability: Leaf spring suspension (2 Parabolic leaves in front, 10 semi-elliptical leaves in rear)
  • High Ground clearance: 188mm for stability even in poor road conditions
  • High Gradability: 35% for a smooth ride on steep ghat roads and flyovers
  • Easier handling: Automatically adjustable clutch height

BIG ON COMFORT

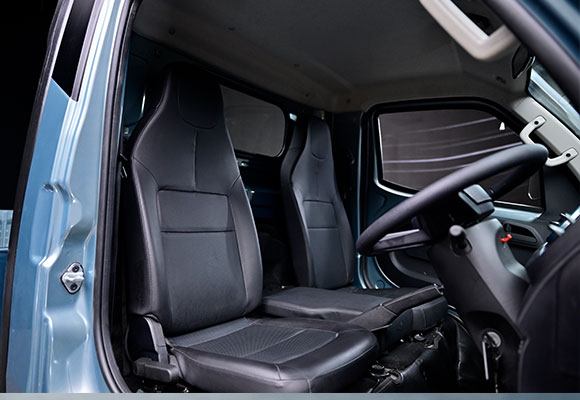

  • New-Gen: Wider walk-through cabin
  • Hydraulic Power Assisted Steering
  • High manoeuvrability: Smaller turning circle radius of 6000mm
  • Highly suitable for easy city traffic or long distances

HIGH SAVINGS

  • Gear shift advisor
  • Eco Switch
  • Higher fuel efficiency: Two driving modes ECO and NORMAL
  • Higher Savings: Low maintenance cost and longevity of aggregate life

HIGH PROFITS

  • High load carrying capability: Rugged and reliable aggregates
  • Higher revenue: Long lead applications for higher profits
  • High utility compartments in the cabin – lockable glovebox, magazine/bottle holder.
  • Advanced features for additional convenience – fast mobile charger, RPAS and sliding window on cabin rear wall.

TATA ADVANTAGE

  • Standard warranty of 2 years or 72,000 km
  • 24-hour toll-free helpline no. (1800 209 7979)
  • Peace of mind: TATA Samarth & Sampoorna Seva package

SPECIFICATIONS

Take an in-depth look at the technical specifications that make all the difference

ENGINE
  • Type : 4 Cylinder 1496 cc DI engine
  • Power : 59.5 kW @4000 r/min (80 HP)
  • Torque : 220 Nm @ 1750-2500 r/min
  • Gradeability : 35%
Clutch and Transmission
  • Clutch : Single plate dry friction diaphragm type
  • Gear Box Type : G5220- Synchromesh 5F + 1R
  • Steering : Hydraulic Power Steering
  • Max Speed : 80 km/h
Brakes
  • Brakes : Front - Disc brakes; Rear - Drum brakes
  • Suspension Front : Parabolic leaf spring
  • Suspension Rear : Semi-elliptical leaf springs
Vehicle Dimensions (mm)
  • Length : 4734
  • Width : 1694
  • Height : 2013
  • Wheelbase : 2600
  • Ground Clearance : 175
  • Min TCR : 6000
Weight (kg)
  • GVW : 2940
  • Payload : 1500
Fuel Tank Capacity
  • Fuel Tank Capacity : 35 litres
Performance
  • Gradability : 35%
Others
  • Seats : D+1
  • DEF Tank : NA
  • Warranty : 2 Years / 72000 Kms
